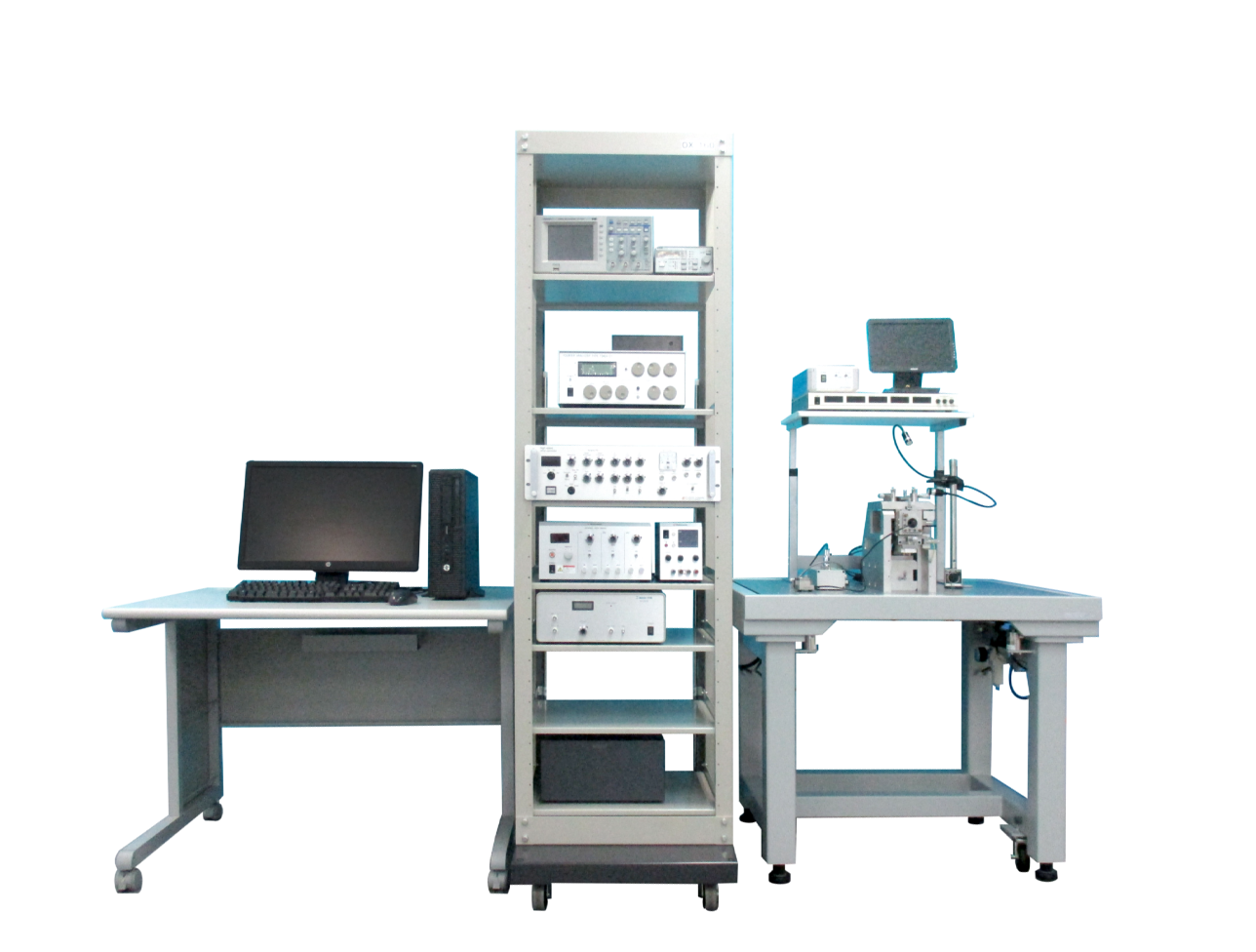

日本RIBM HS-AFM超高速視頻級原子力顯微鏡

設備簡介
在線咨詢

產品簡介：

超高速視頻級原子力顯微鏡（Sample-Scanning High-Speed Atomic Force Microscope ，HS-AFM SS-NEX）是由日本 Kanazawa 大學 Prof. Ando 教授團隊研發的，也是世界上第一臺可以達到視頻級成像的商業化原子力顯微鏡。HS-AFM突破了傳統原子力顯微鏡“掃描成像速慢”的限制，能夠?qū)崿F(xiàn)在液體環境下超快速動態成像，分辨率為納米水平。樣品無需特殊固定，不影響生物分子的活性，尤其適用于生物大分子互作動態觀測。推出至今，全球已有80多位用戶，發表 SCI 文章 200 余篇，包括Science, Nature, Cell 等頂級雜志。

技術特征：

√ 掃描速度快	√ 探針小，適用于生物樣品	√ 自動校正，適合長時間測樣
◆ 掃描速度最高可達 20 frame/s ◆ 有 4 種掃描臺可供選擇	◆ 懸臂探針共振頻率高，彈簧系數小。避免了對生物樣品等的損傷	◆ 懸臂探針可自動漂移校準，適用于長時間觀測。

技術原理：

超高速視頻級原子力顯微鏡應用領域：

應用包括：利用 HS-AFM可在納米尺度動態實時記錄生物大分子的運動以及分子間相互作用，包括：


walking myosin V 實時觀察	dendrite growth in neuron 實時觀察	rotorless F1-ATPase 實時觀察	light response for D69N 實時觀察


IgG antibody 150nm * 150nm	plasmid DNA 250nm * 250nm	myosinⅡ 500nm * 500nm	bacteriorhodopsin 40nm * 40nm

lipid membrane 3500nm * 3500nm	350nm poly beads 900nm * 900nm	E.coli 3000nm * 3000nm	350nm poly beads 3000nm * 3000nm

超高速視頻級原子力顯微鏡相關應用案例：

1.Video imaging of walking myosin V 實時觀察myosin V蛋白的運動

N. Kodera et al. Nature 468, 72 (2010). Kanazawa University

2.Real-space and real-time dynamics of CRISPR-Cas9 實時顯示CRISPR基因編輯

Mikihiro et al. Nature Communications, (2017). Kanazawa University

設備規格及參數：

標準配置
掃描速度 scan speed	50 ms/frame (20 frames/sec)
壓電掃描器 piezo range	X: 0.7µm, Y:0.7µm, Z: 0.4µm
樣品大小 sample size	1.5mm in diameter
掃描環境 environment	In liquid/In air
控制系統 control system	PID control, Dynamic PID control
significant Function	Scanner active dumping，Drift correction for cantilever excitation

可選配置
光照裝置 Light irradiation Unit	Light irradiation unit for the experiments with caged compounds. Variable wavelength: 350-560nm
寬掃描臺 wide scanner	1frames/s；XY：4µm×4µm, Z：0.7µm
超寬掃描臺Amplified ultra wider scanner	0.1frames/s；XY：30µm×30µm, Z：1.2µm
微流控系統 Circulation unit	The observation solutions can be exchanged while continuing AFM observation.

已發表文獻（2017年）：

1. Ando T.; "Directly watching biomolecules in action by high-speed atomic force microscopy"; Biophys. Rev. (2017)

2. Ando T.; "High-speed Atomic Force Microscopy for Observing Protein Molecules in Dynamic Action", Proceedings of SPIE 10328, Selected Papers from the 31st International Congress on High-Speed Imaging and Photonics (2017)

3. Aybeke E., Belliot G., Lemaire‐Ewing S., Estienney M., Lacroute Y., Pothier P., Bourillot E., Lesniewska, E.; "HS‐AFM and SERS Analysis of Murine Norovirus Infection: Involvement of the Lipid Rafts"; Small 13 1 (2017)

4. Cai W, Liu Z., Chen Y., Shang G.; "A Mini Review of the Key Components used for the Development of High-Speed Atomic Force Microscopy"; Science of Advanced Materials Vol. 9 Numb. 1 (2017) p.77-88

5. Colom A., Redondo-Morata L., Chiaruttini N., Roux A., Scheuring S.; "Dynamic remodeling of the dynamin helix during membrane constriction"; Proceedings of the National Academy of Sciences 114 21 (2017)

6. Dufrêne Y., Ando T., Garcia R., Alsteens D., Martinez-Martin D., Engel A., Gerber Ch., Müller D.; "Imaging modes of atomic force microscopy for application of molecular and cell biology"; Nat. Nanotechnol. 12 (2017) p.295-307

7. Harada H., Onoda A., Uchihashi T., Watanabe H., Sunagawa N., Samejima M., Igarashi K., Hayashi T.; "Interdomain flip-flop motion visualized in flavocytochrome cellobiose dehydrogenase using high-speed atomic force microscopy during catalysis"; Chemical Science (2017)

8. Karner A., Nimmervoll B., Plochberger B., Klotzsch E., Horner A., Knyazev D., Kuttner R., Winkler K., Winter L., Siligan Ch., Ollinger N., Pohl P., Preiner J.; "Tuning membrane protein mobility by confinement into nanodomains"; Nature Nanotechnology 12 3 (2017) p.260-266

9. Keya J., Inoue D., Suzuki Y., Kozai T., Ishikuro D., Kodera N., Uchihashi T., Kabir A., Endo M., Sada K., Kakugo A.; "High-Resolution Imaging of a Single Gliding Protofilament of Tubulins by HS-AFM" ; Scientific Reports 7 1 (2017)

10. Kim Y.; "An Advanced Characterization Method for the Elastic Modulus of Nanoscale Thin-Films Using a High-Frequency Micromechanical Resonator"; Materials 10 7 (2017)

11. Kim Y.; "An evaluation technique for high-frequency dynamic behavior of a sandwich microcantilever beam"; Journal of Sandwich Structures & Materials (2017)

12. Korolkov V., Baldoni M., Watanabe K., Taniguchi T., Besley E., Beton P.; "Supramolecular heterostructures formed by sequential epitaxial deposition of two-dimensional hydrogen-bonded arrays"; Nature Chemistry (2017)

13. Legrand B., Salvetat J.-P., Walter B., Faucher M., Théron D., Aimé J.-P.; "Multi-MHz micro-electro-mechanical sensors for atomic force microscopy"; Ultramicroscopy 175 (2017) p.46-57

14. Liao H.-S., Chih-Wen Yang, Hsien-Chen Ko, En-Te Hwu, Ing-Shouh Hwang; "Imaging initial formation processes of nanobubbles at the graphite–water interface through high-speed atomic force microscopy"; Applied Surface Science (2017)

15. Matsui S., Kureha T., Hiroshige S., Shibata M., Uchihashi T., Suzuki D.; "Fast Adsorption of Soft Hydrogel Microspheres on Solid Surfaces in Aqueous Solution"; Angewandte Chemie (2017)

16. Mierzwa B., Chiaruttini N., Redondo-Morata L., Moser von Filseck J., König J., Larios J., Poser I., Müller-Reichert T., Scheuring S., Roux A., Gerlich D.; "Dynamic subunit turnover in ESCRT-III assemblies is regulated by Vps4 to mediate membrane remodeling during cytokinesis"; Nature Cell Biology (2017)

17. Miyata K., Tracey J., Miyazawa K., Haapasilta V., Spijker P., Kawagoe Y., Foster A., Tsukamoto K., Fukuma T.; "Dissolution Processes at Step Edges of Calcite in Water Investigated by High-Speed Frequency Modulation Atomic Force Microscopy and Simulation"; Nano Lett. 17 7 (2017) p.4083-4089

18. Miyazawa K., Watkins M., Shluger A., Fukuma T.; "Influence of ions on two-dimensional and three-dimensional atomic force microscopy at fluorite–water interfaces"; Nanotechnology Vol. 28 Numb. 24 (2017)

19. Mohamed M., Kobayashi A., Taoka A., Watanabe-Nakayama T., Kikuchi Y., Hazawa M., Minamoto T., Fukumori Y., Kodera N., Uchihashi T., Ando T., Wong R.; "High-Speed Atomic Force Microscopy Reveals Loss of Nuclear Pore Resilience as a Dying Code in Colorectal Cancer Cells"; ACS Nano 11 6 (2017) p.5567-5578

20. Nievergelt A., Andany S., Adams J., Hannebelle M., Fantner G.; "Components for high-speed atomic force microscopy optimized for low phase-lag"; Proceedings of 2017 IEEE International Conference on Advanced Intelligent Mechatronics (AIM) (2017)

21. Rangl M., Rima L., Klement J., Miyagi A., Keller S., Scheuring S.; "Real-time Visualization of Phospholipid Degradation by Outer Membrane Phospholipase A using High-Speed Atomic Force Microscopy"; Journal of Molecular Biology 429 7 (2017) p.977-986

22. Ren J., Zou Q.; "High-speed dynamic-mode atomic force microscopy imaging of polymers: an adaptive multiloop-mode approach"; Beilstein J. Nanotechnol. 8 (2017) p.1563-1570

23. Ricci M., Trewby W., Cafolla C., Voïtchovsky K.; "Direct observation of the dynamics of single metal ions at the interface with solids in aqueous solutions"; Scientific Reports 7 43234 (2017)

24. Rigato A., Miyagi A., Scheuring S., Rico F.; "High-frequency microrheology reveals cytoskeleton dynamics in living cells"; Nature Physics (2017) DOI: 10.1038/NPHYS4104

25. Ruan Y., Miyagi A., Wang X., Chami M., Boudker O., Scheuring S.; "Direct visualization of glutamate transporter elevator mechanism by high-speed AFM"; PNAS 114 7 (2017) p.1584-1588

26. Sadeghian H., Herfst R., Dekker B., Winters J., Bijnagte T., Rijnbeek R.; "High-throughput atomic force microscopes operating in parallel"; Review of Scientific Instruments 88 033703 (2017)

27. Sakiyama Y., Panatala R., Lim R.; "Structural Dynamics of the Nuclear Pore Complex"; Seminars in Cell and Developmental Biology (2017)

28. Shibata M., Watanabe H., Uchihashi T., Ando T., Yasuda R.; "High-speed atomic force microscopy imaging of live mammalian cells"; Biophysics and Physicobiology Vol. 14 (2017) p.127-135

29. Terahara N., Kodera N., Uchihashi T., Ando T., Namba K., Minamino T.; "Na+-induced structural transition of MotPS for stator assembly of the Bacillus flagellar motor"; Science Advances 3 11 eaao4119 (2017)

30. Uchihashi T., Scheuring S.; "Applications of high-speed atomic force microscopy to real-time visualization of dynamic biomolecular processes"; Biochim Biophys Acta. (2017)

31. Usukura E., Narita A., Yagi A., Sakai N., Uekusa Y., Imaoka Y., Ito S., Usukura J.; "A Cryosectioning Technique for the Observation of Intracellular Structures and Immunocytochemistry of Tissues in Atomic Force Microscopy (AFM)"; Scientific Reports 7 (2017)

32. Watanabe S., Ando T.; "High-speed XYZ-nanopositioner for scanning ion conductance microscopy"; Applied Physics Letters 111 11 (2017)

33. Watanabe-Nakayama T., Kodera N., Konno H., Ono K., Teplow D., Yamada M., Ando T.; "Nano-Space Video Imaging Reveals Structural Dynamics of Fibrous Protein Assembly and Relevant Enzymes"; Biophysical Journal 112 3 (2017)

34. Zhang Y., Tunuguntla R., Choi P., Noy A.; "Real-time dynamics of carbon nanotube porins in supported lipid membranes visualized by high-speed atomic force microscopy"; Philosophical Transactions of The Royal Society B Biological Sciences 372 (2017)

35. Zhang Y., Yoshida A., Sakai N., Uekusa Y., Kumeta M., Yoshimura S.; "In vivo dynamics of the cortical actin network revealed by fast-scanning atomic force microscopy" Microscopy 20 (2017) p.272-282

更多文獻詳見： http://www.highspeedscanning.com/hs-afm-references.html

部分用戶列表：
